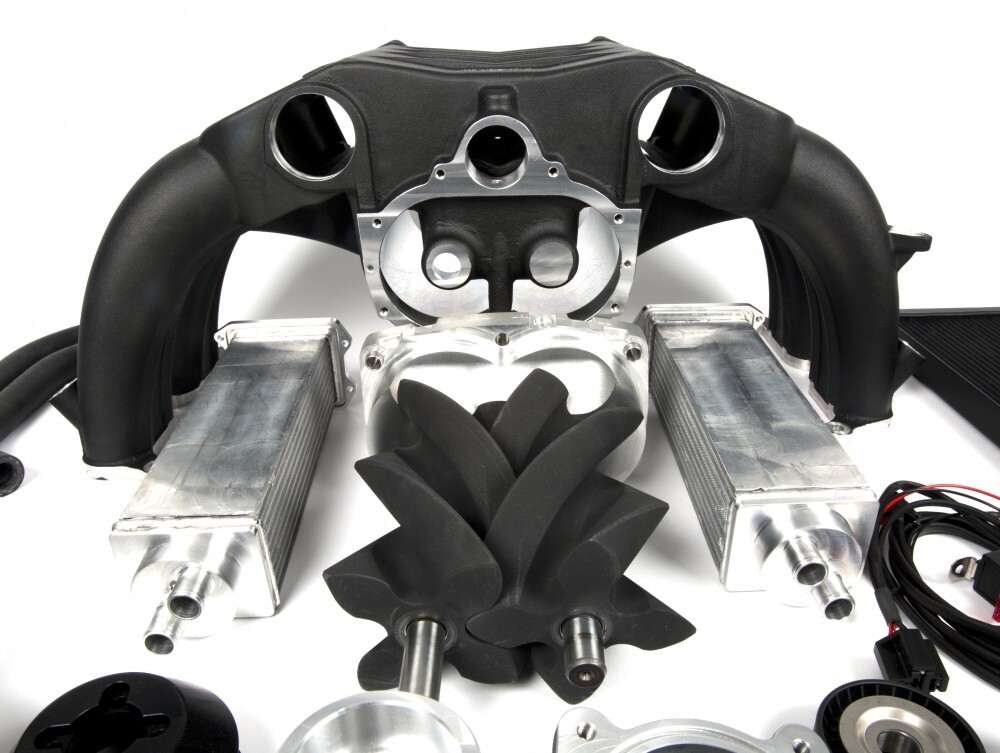

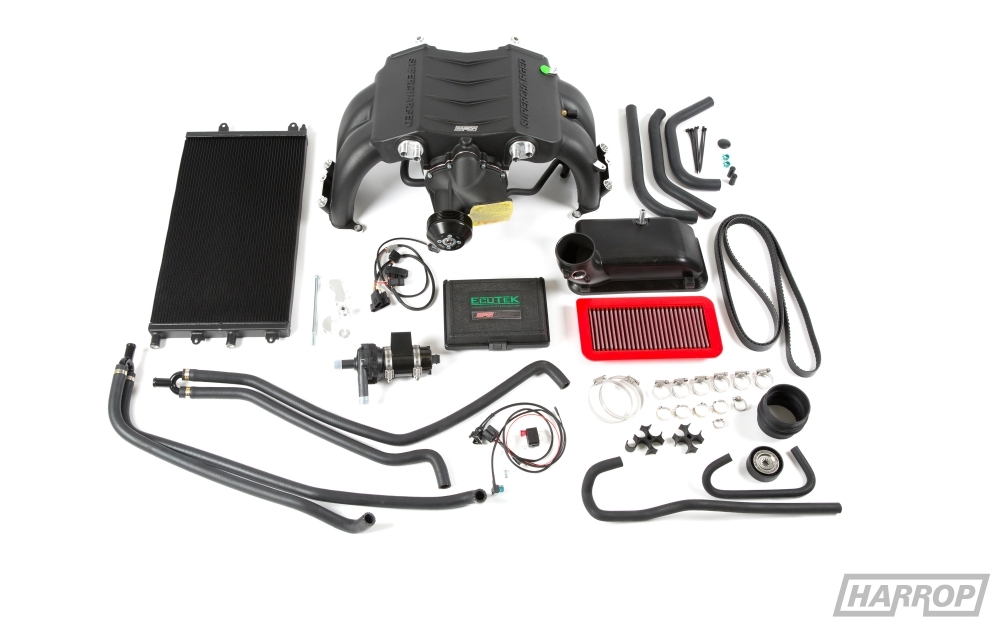

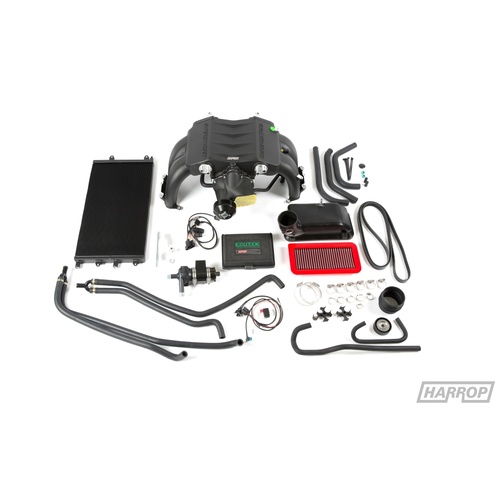

Designed and manufactured by Harrop to OE standards, utilising the latest generation Eaton TVS supercharger technology, the TVS1320 Supercharger system is exclusively designed for the FA20 engine.
The front drive / front inlet design allows for a shorter less restrictive intake path allowing for improved air flow and superior performance. The integrated design utilising two high density water to air intercoolers provides optimal air distribution over the intercooler face.

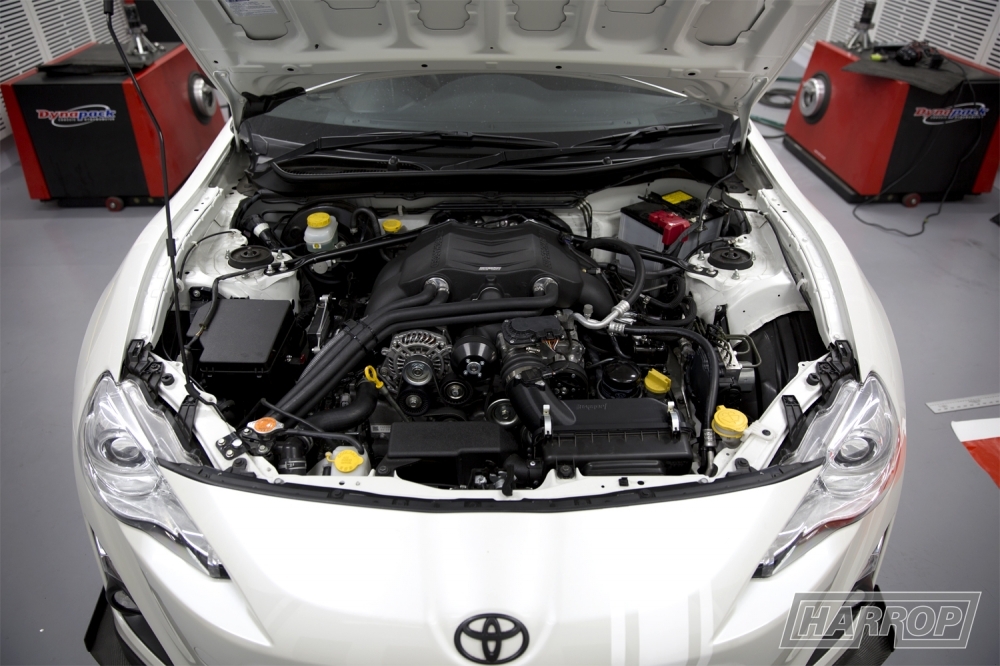

Installation is of OE appearance and fitment, leveraged from designing and supplying OE supercharger programs including Ford and Lotus.
Key Features
- Inverted supercharger provides more plenum volume before and after intercoolers
- One piece manifold / supercharger housing design
- Dual pass low temperature intercooler radiator
- Twin, dual pass high capacity water to air intercoolers
- Passed Australian IM240 drive cycle emission's test
- Will support standard to full engine builds
- OE appearance and operation
- Suitable for both Automatic and Manual Transmission vehicles
Note: Tune has to be adjusted to suit once kit is installed. Cost is not included. Price for PBMS Tune Package is $1199+gst ($1379 including).
Note: MY18 and newer vehicles will require additional airbox components – Please enquire
If you're interesting in having PBMS instal and tune this vehicle for you - check out our BRZ / 86 Stage 5 Package
Want to see results? Check out Alan's BRZ build here.
