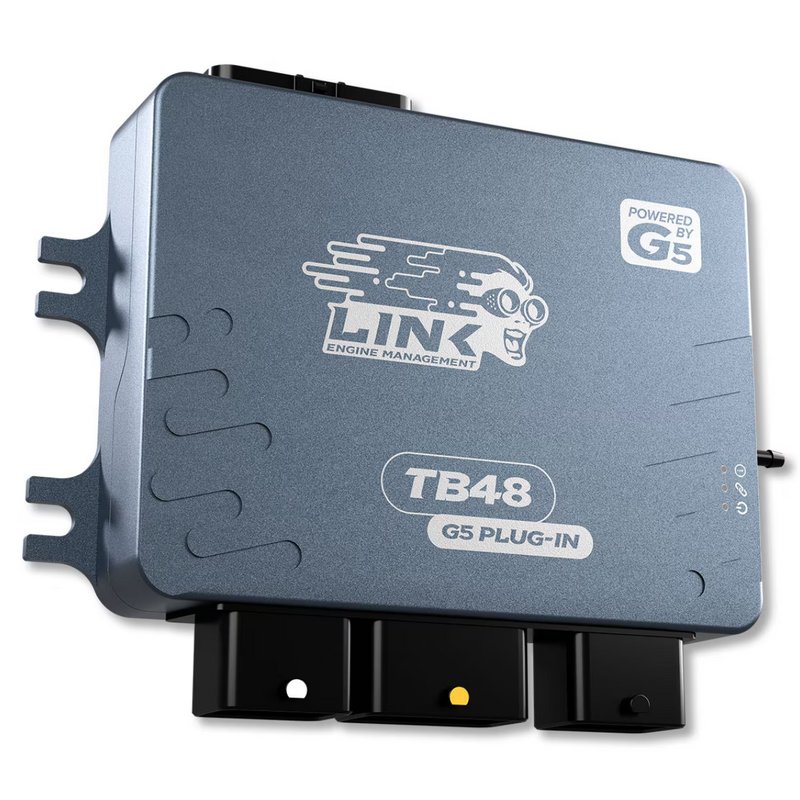

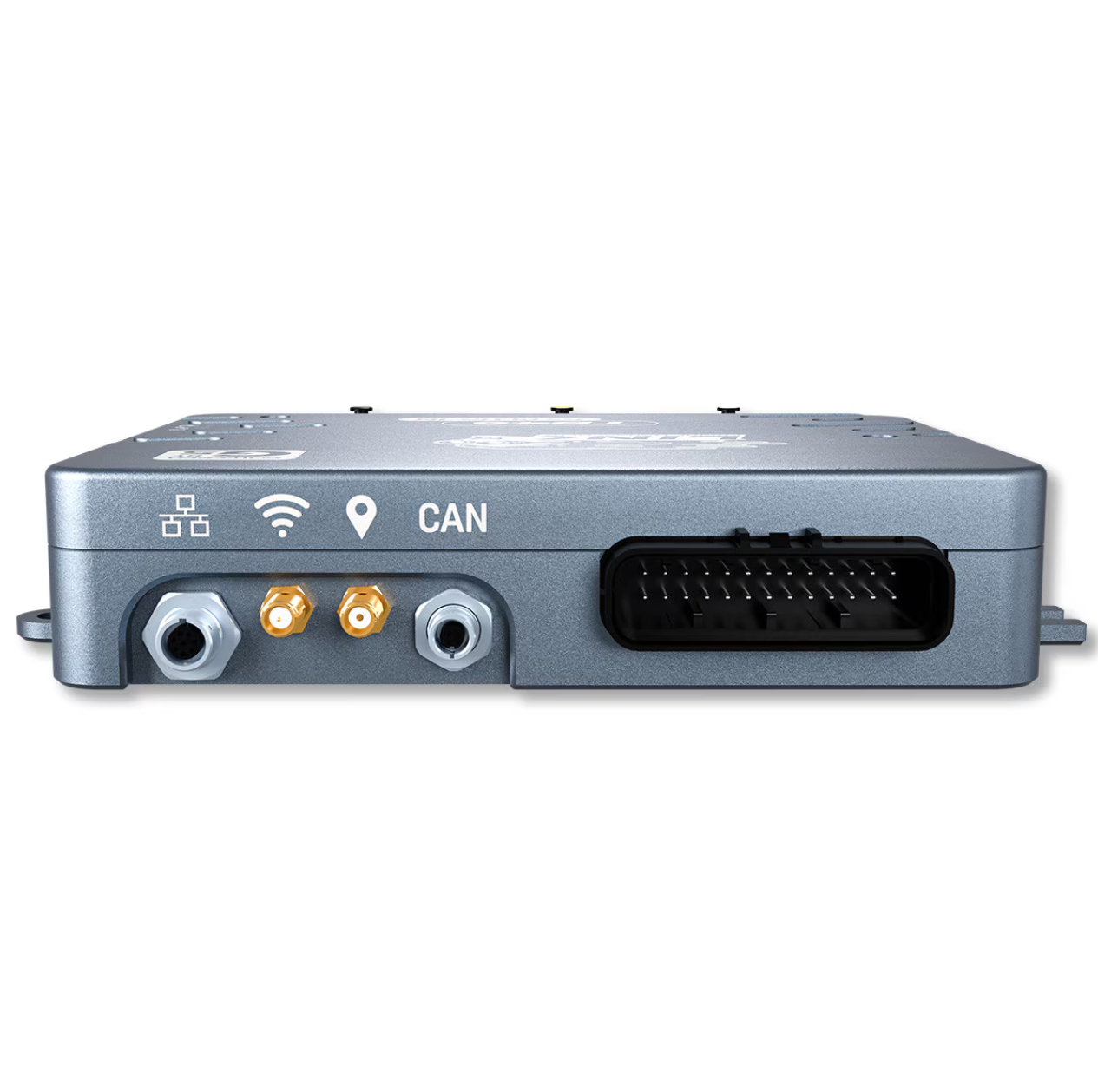

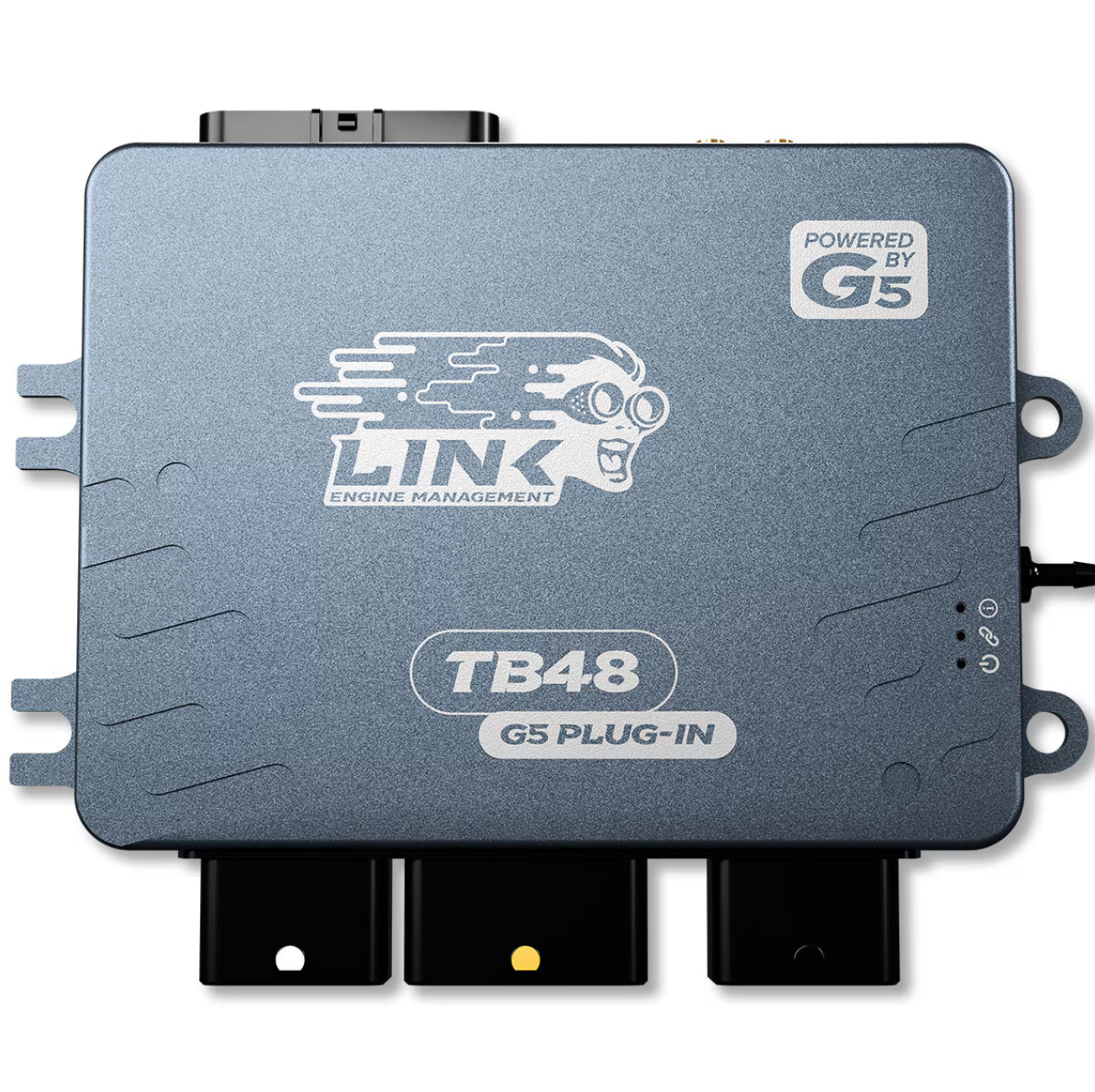

The TB48 G5 Plug-In ECU is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The TB48 G5 Plug-In processing unit runs the same powerful microcontroller and firmware as the G5 Voodoo Neo.
Designed for all post-2016 Nissan Patrol Y61 models with the TB48 engine. Support for both Manual and Automatic Transmissions.
For more technical information please see the Features and Specifications tabs.
In the box:
· TB48 G5 Plug-in ECU
· USB-C Connection Cable
· Wi-Fi Antenna
· 4m GPS Antenna (Magnetic or Adhesive Mount)
· USB-C and SMA Dust Covers
· Link stickers
Full OEM CAN Bus integration
· G5 features such as Wi-Fi, Ethernet and GPS
· Full factory E-throttle (DBW) control
· Full VIAS control
· Onboard Wideband lambda
· Fast log file download speed
· 1GB onboard logging
· Control both Manual and Automatic Transmissions
· Billet CNC Aluminium sealed Enclosure
· Mounts in OEM Location
· Backed by Link’s Limited Lifetime Warranty
All Link Plug-in ECUs come with the below features as standard:
· Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed.
· All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction Control
· Two CAN bus channels
· Advanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is available
· Exceptional adaptive knock control or traditional threshold-based knock control.
· Onboard 3 Axis Accelerometer
· Onboard Trigger Oscilloscope
· Live user configurable math channels running in ECU
· Very flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supported
· CAN Keypad control
· Flexible engine protection limiters
· PC Link software – Tuning, display and powerful log analysis all in one package.
