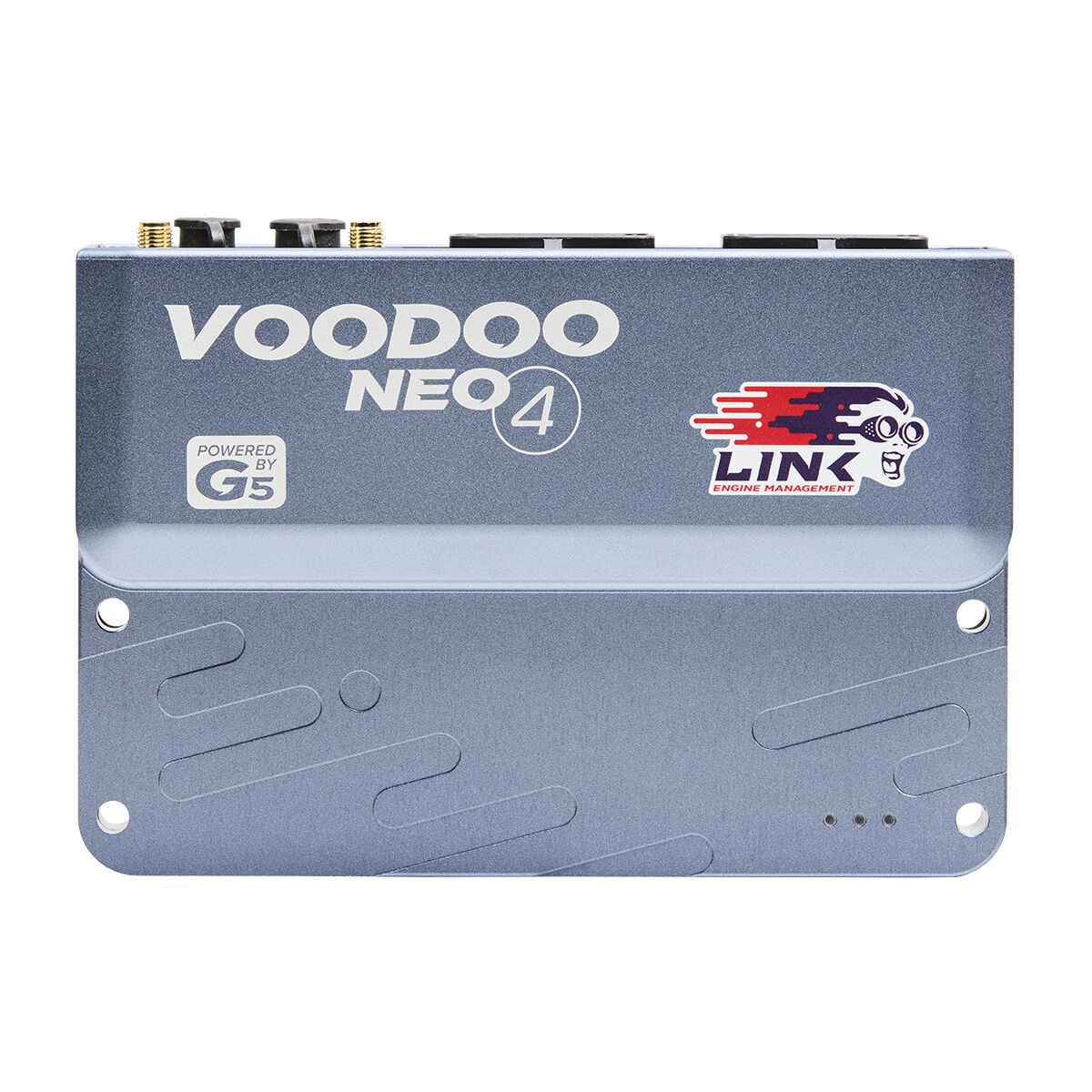

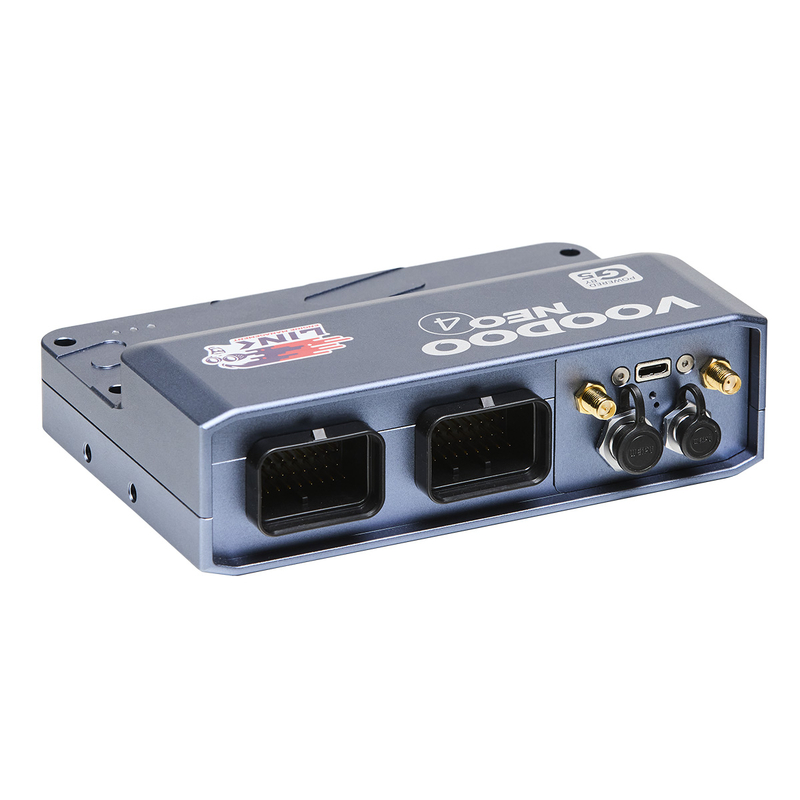

Link G5 Voodoo Neo 4

The G5 Voodoo Neo 4 can run:

6 cylinders port or direct injection and direct spark, or,

4 cylinders with direct/port staged injection, and direct spark

The G5 Voodoo processing units are the perfect choice for professional level motorsport.

In the box:

Features

New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
Built in ethernet
1GB onboard logging memory
1 onboard wideband
CNC case, sealed enclosure

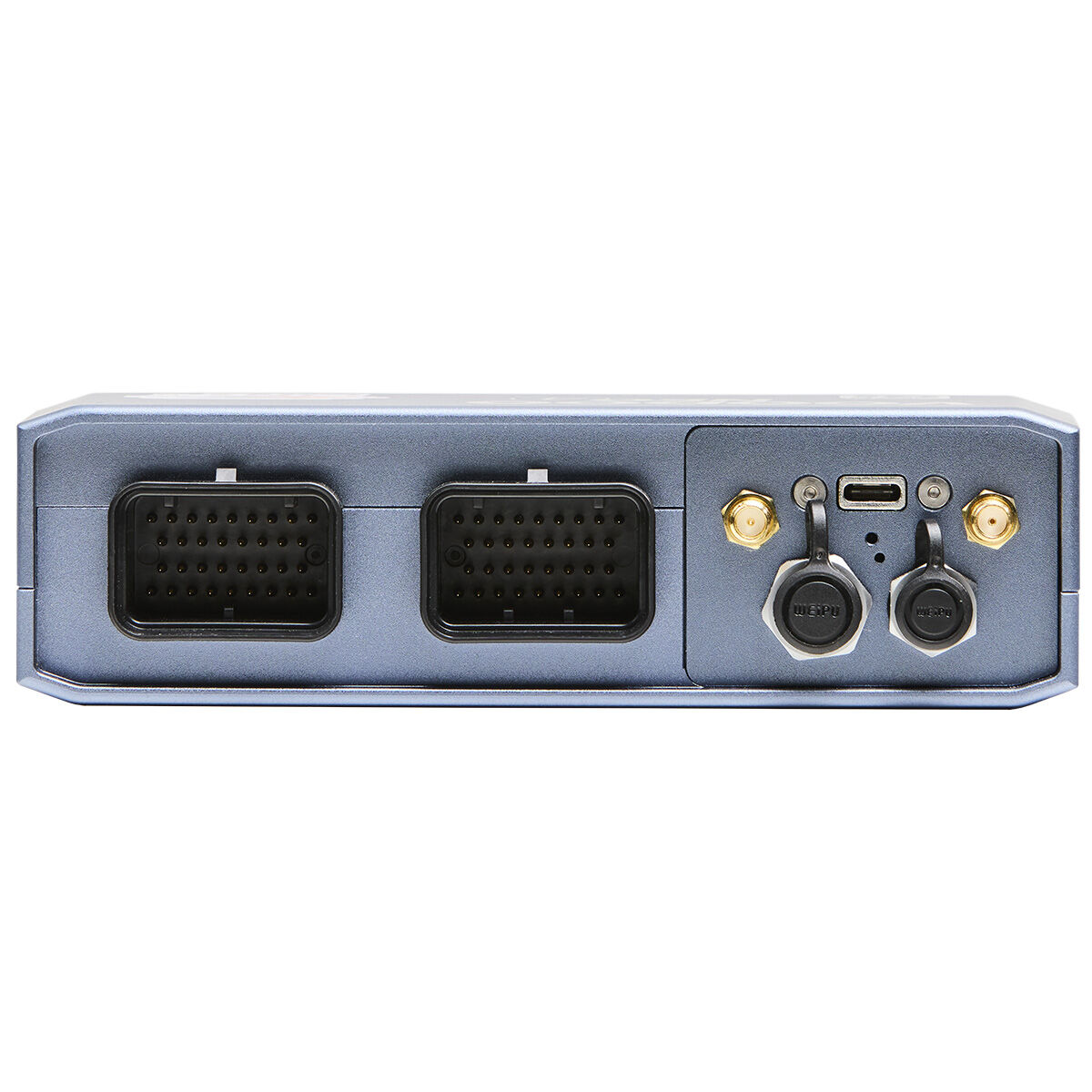

68 pins total (Link A and B 34 pin superseal connectors)
K-line support
New WEIPU CAN connector, which supplies power for the CAN-bus.
Highly customisable IO, using 2 types of multi purpose pins:
ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.

Requires “A” & “B” connector kits (not supplied).

(154-5000)

Inputs/Outputs

Control up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct/port staged injection, thanks to:
- 8 injector pins
- 6 ignition pins
- 12 aux. output pins
- (4 Aux pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)
- 6 ADIO pins
Highly customisable IO, using 2 types of multi purpose pins: ADIO pins, and Aux./Digital-Input pins. These pins can act as inputs or outputs.
ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
Neo 4 has Aux/DI pins which are used as either an Aux pin, or a Digital Input pin. They can read PWM/frequency.
Any unused injector/ignition pins can be used as an auxiliary pin
All ignition and auxiliary pins are back feed protected.
3 analog inputs
10 digital inputs
4 temperature inputs
2 knock inputs
2 trigger inputs
1 x wideband lambda controller
Dual H-Bridge e-throttle control
Dedicated ignition switch pin
5v sensor supply
CAN 1 via Weipuconnector. CAN connector now supplies power and ground.

Communications

USB-C (cable included)
Power over USB
WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
CAN: New WEIPU connector supplies power for CAN devices
Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
GPS: Functional when GPS antenna connected (antenna included)

Data Logging

Size & Weight

Mounting

4x M5 threaded mount holes on the sides for bracket mounting
4x M5 threaded mount holes on the underside for clean mounting
4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts)

Connectors
