Key Features
- All-aluminum construction with bar-and-plate core
- TIG-welded end tanks for increased strength and durability
- 6 threaded mounting points for universal fitment

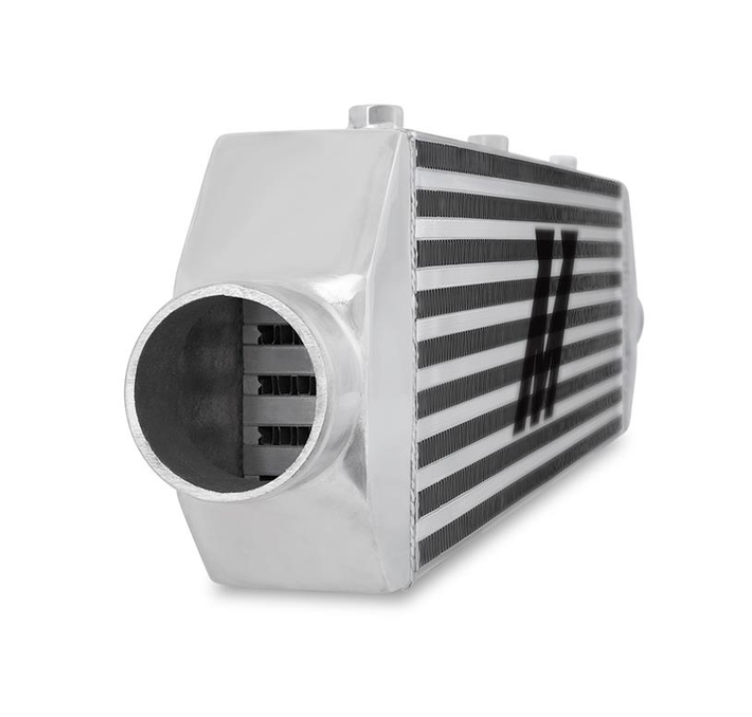

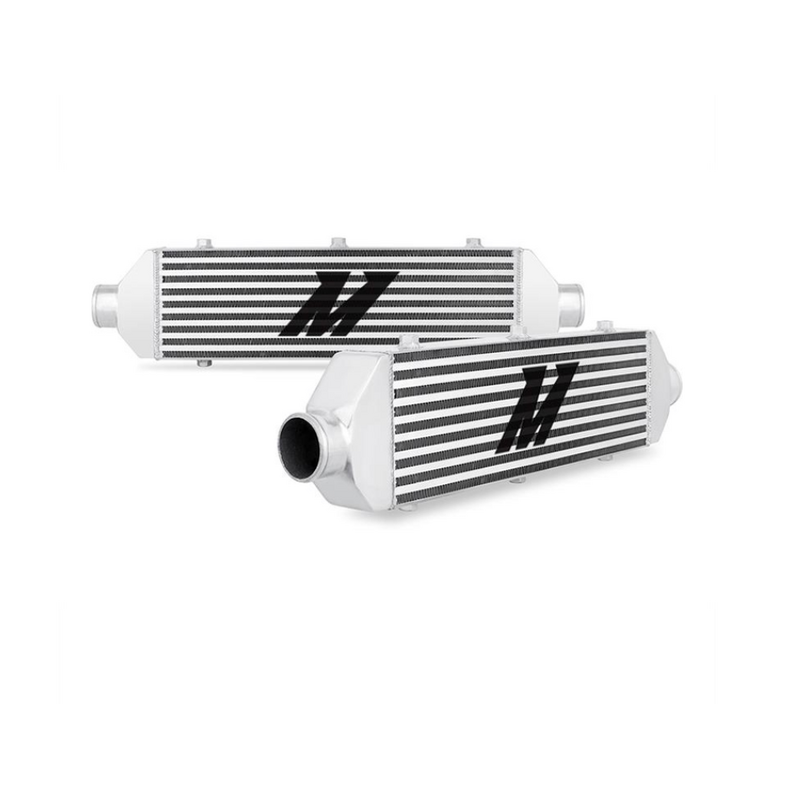

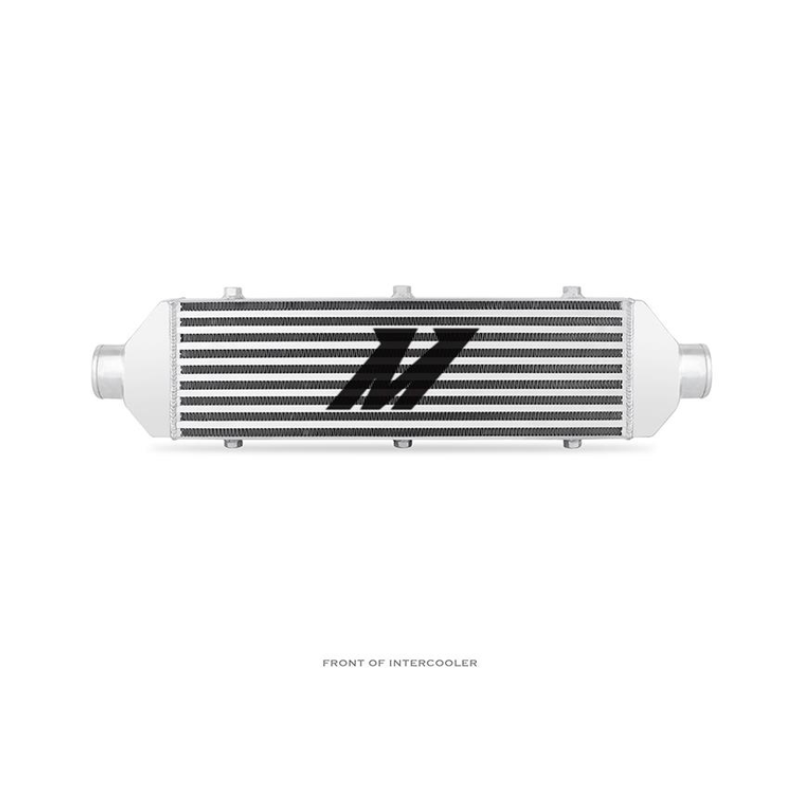

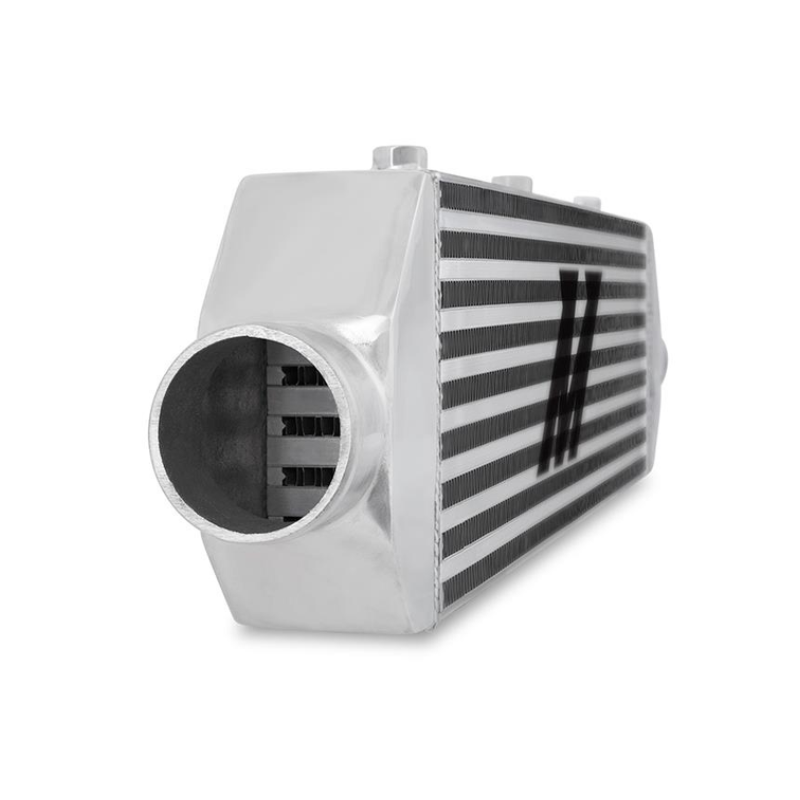

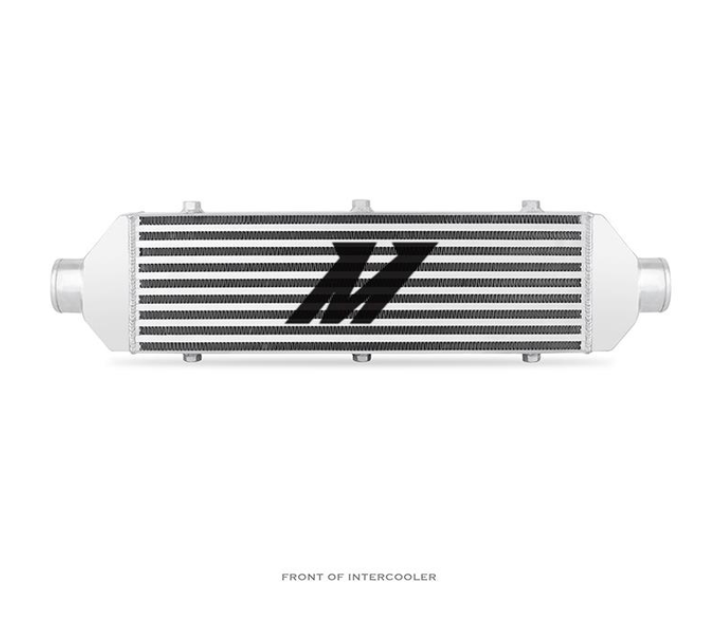

Sleek and stylish, this universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection.

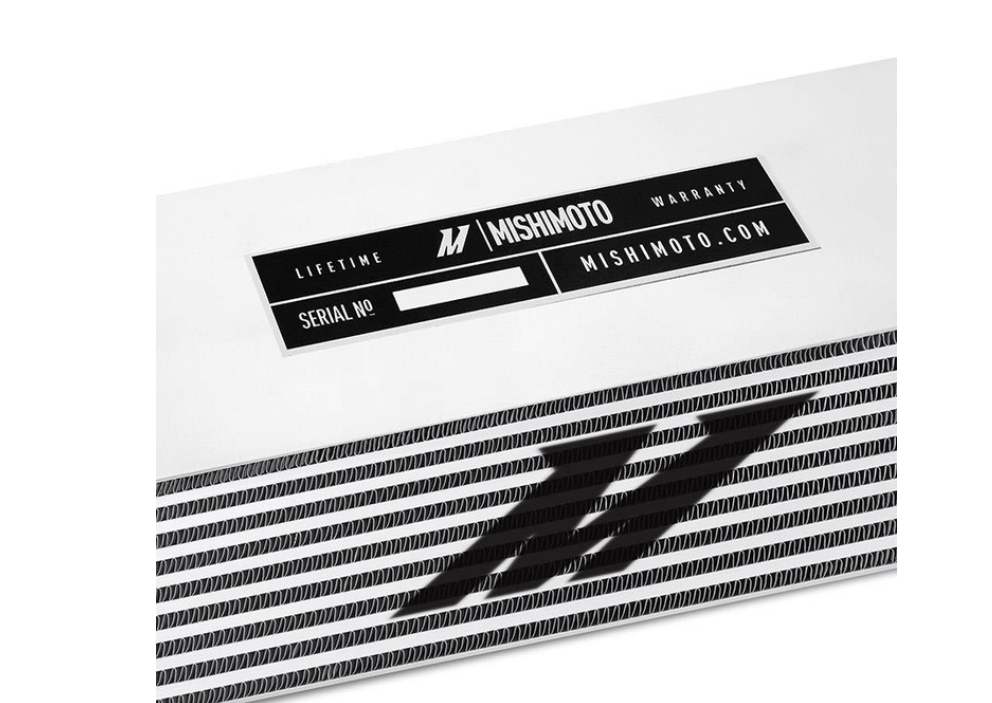

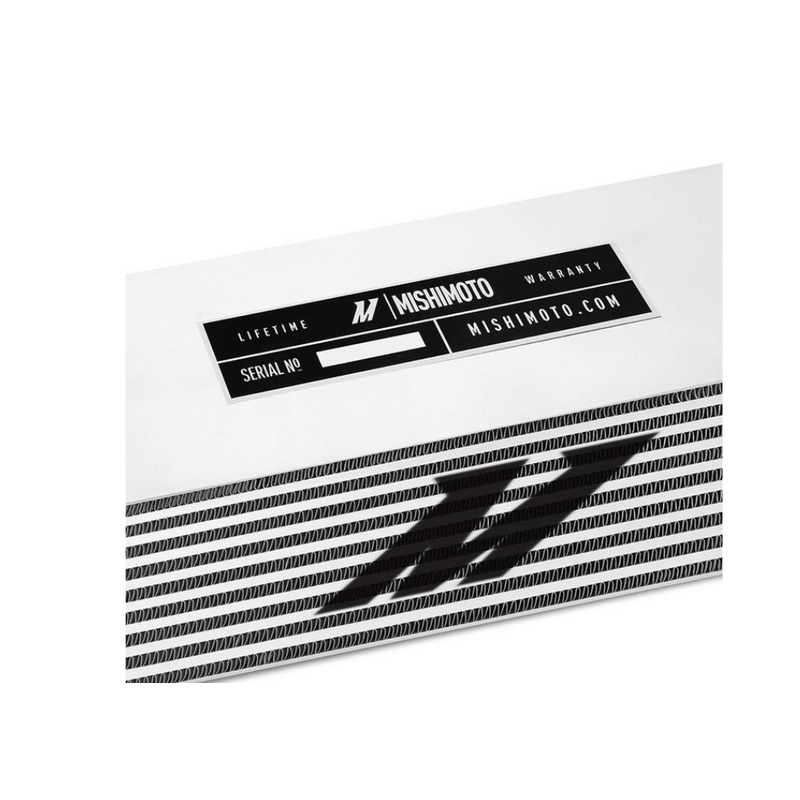

Note: For your taste, only one side of the intercooler has the Mishimoto logo.
| Maximum Recommended Boost Pressure (PSI) |
22 |
| Maximum Recommended Horsepower |
500 |
| Overall Length (in) |
28 |
| Overall Height (in) |
7.5 |
| Overall Width (in) |
2.5 |
| Core Type |
Bar-and-Plate |
| Core Thickness (in) |
2.5 |
| Core Length (in) |
20.5 |
| Core Height (in) |
6.25 |
| Inlet (in) |
2.5 |
| Outlet (in) |
2.5 |
(MMINT-UZ)
