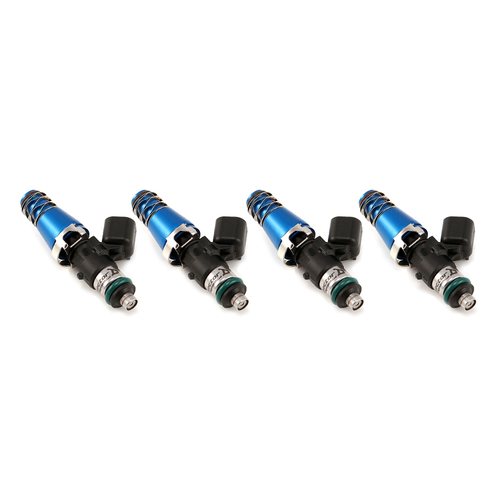

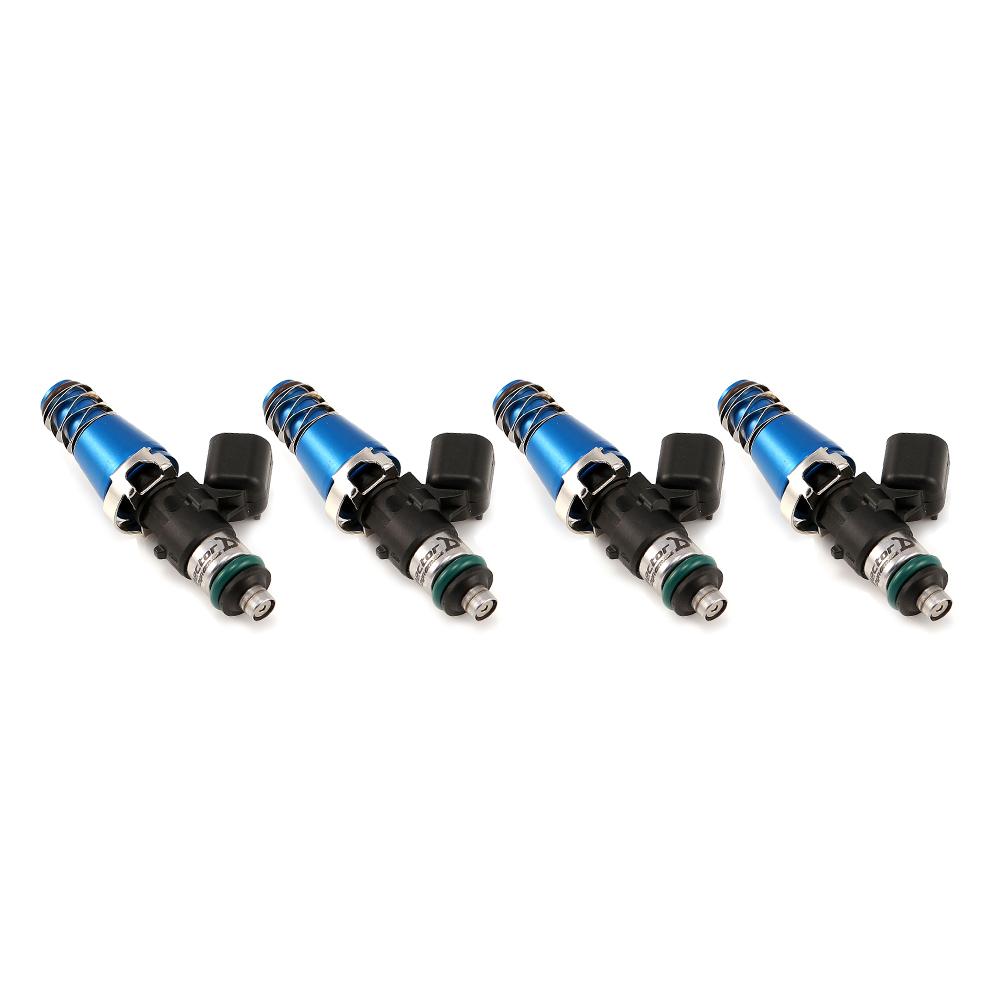

ID 2600-XDS Set of 4 Injectors Top Feed Only including 11mm blue adapter tops, 14mm lower O-rings, plugs and pins. Direct Plug and Play for the Nissan Silvia S13, S14, S15, 180SX, SR20DET.

The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.

The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.

The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.

The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

Basic Specifications

  • Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector – USCAR

(2600.60.11.14.4)

  • The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x
  • The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths
  • Corrosion resistant all stainless steel internals capable of extended service life with corrosive fuels
  • Ideal for E85, Ethanol, Methanol, Hydrocarbon fuels - NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Compact body allows fitment in over 200 applications including current and future engines utilising short body injectors
  • Stronger magnetic circuit offers stable operation up to 9 bar
SKU 2600.60.11.14.4
Brand Injector Dynamics
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.003000000m3
