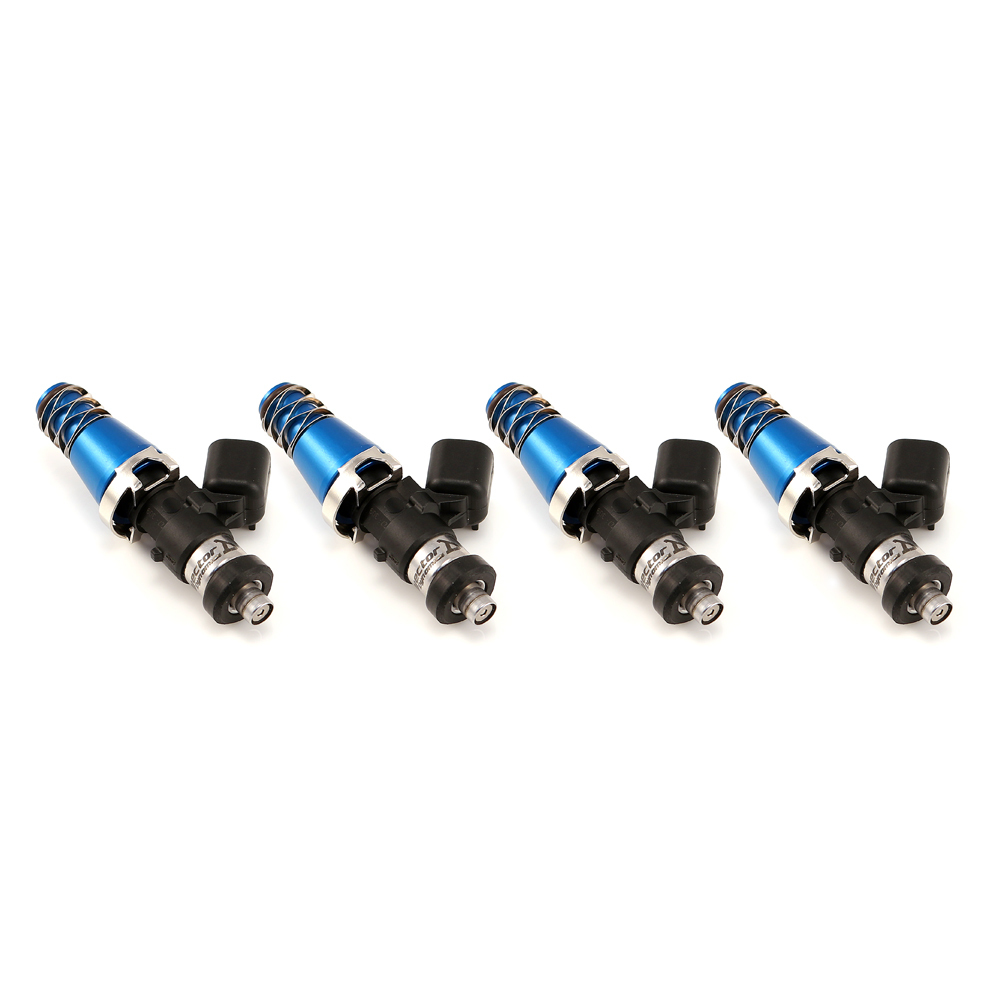

ID 1050-XDS Set of 4 Injectors including 11mm (blue) adapters, Denso lower, plugs and pins. Direct Plug and Play for the 1999 - 2006 Toyota Celica SS-I, 1ZZ-FE.

The ID1050-XDS is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300-XDS, and ID1700-XDS. Like the ID1300-XDS and ID1700-XDS, the ID1050-XDS is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050-XDS offers numerous improvements, and is sure to become the new reference.

Basic Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR

(1050.60.11.D.4.1ZZ)

  • The ID1050-XDS is the evolution of the ID1050x
  • The ID1050-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths
  • Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels
  • Compact body allows fitment in over 200 applications including current and future engines utilising short body injectors
  • Improved internal flow path increases output by 5% without sacrificing low flow performance
  • Stronger magnetic circuit offers stable operation up to 10 bar
  • Replaceable inlet filter extends service life
SKU 1050.60.11.D.4.1ZZ
Brand Injector Dynamics
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.003000000m3
