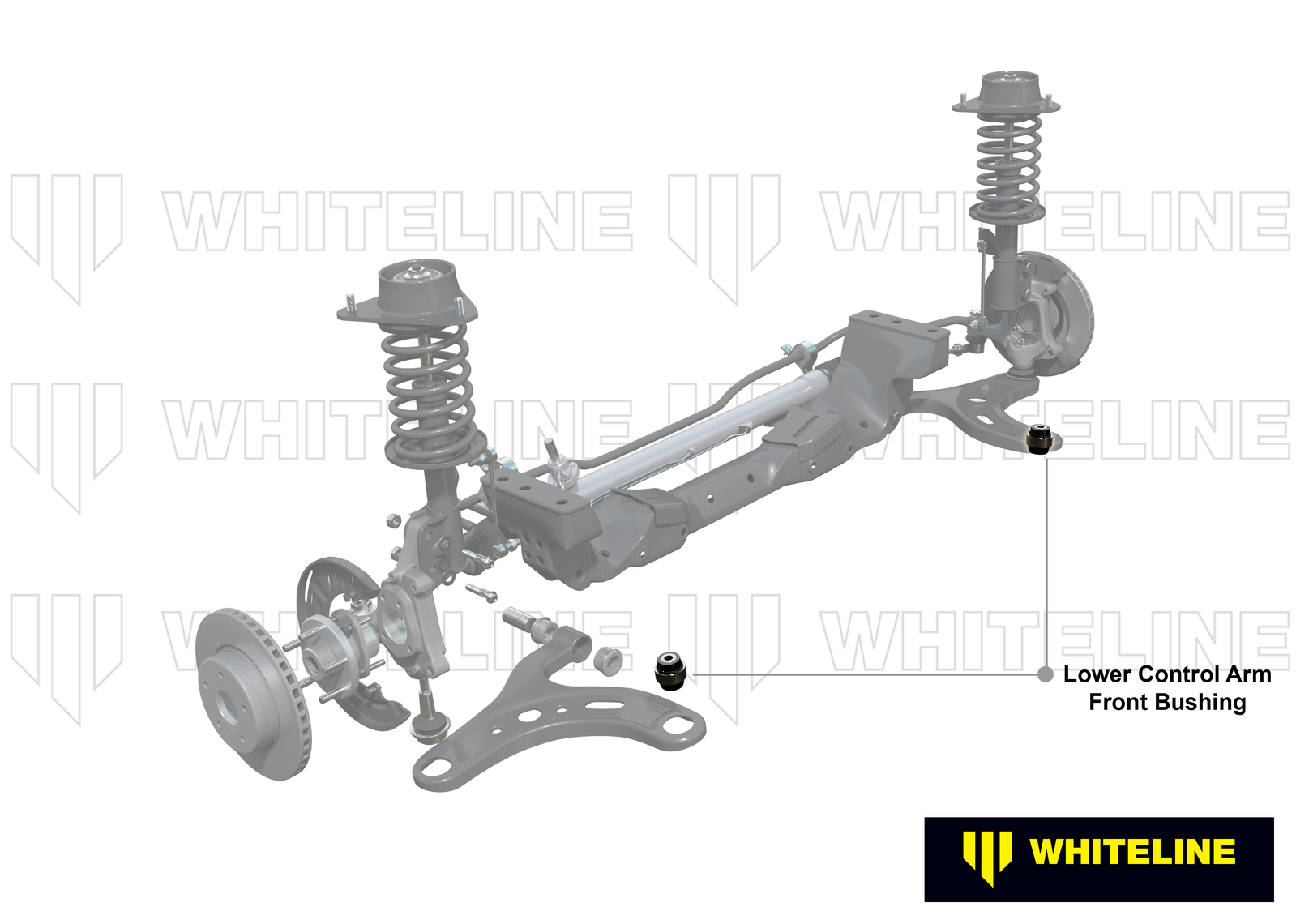

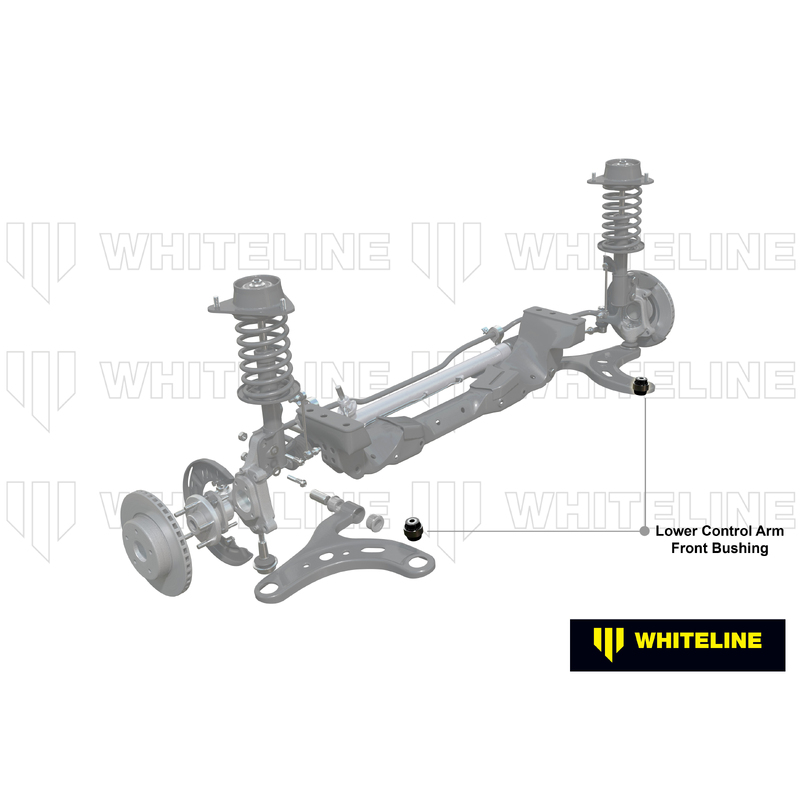

Benefit Note: Whiteline Anti Dive Kits are primarily designed to improve traction, cornering grip and minimise toe change under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance. The Whiteline Anti Dive Kit is designed to add positive caster adjustment changing the nature of front anti-dive and lift. Revised anti-dive geometry minimises deflection under braking whilst the low compliance synthetic elastomer bushings minimise dynamic caster loss and provide positive steering feedback. The result is superior traction under power and braking, improved turn-in and more consistent alignment angles during cornering.
Installation
Install Guide: Download guideline
Fitting time: 2.5 hrs
Fitting Difficulty: Suspension Specialist recommended. Use your Click & Fit service.
Recommend Wheel Alignment: None
| SKU |
KCA434 |
| Foot Note 1 |
Adds +0.5deg caster + anti-dive |
| Foot Note 3 |
3 Year / 60,000Kms |
| Components Per |

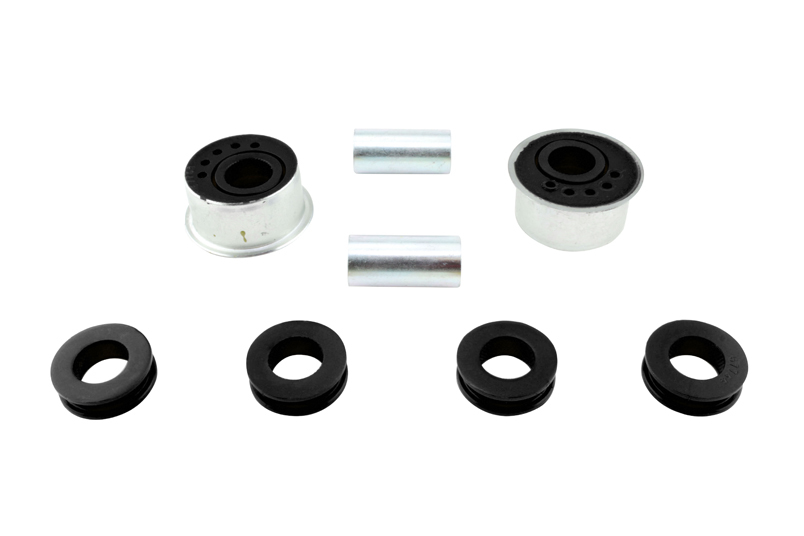

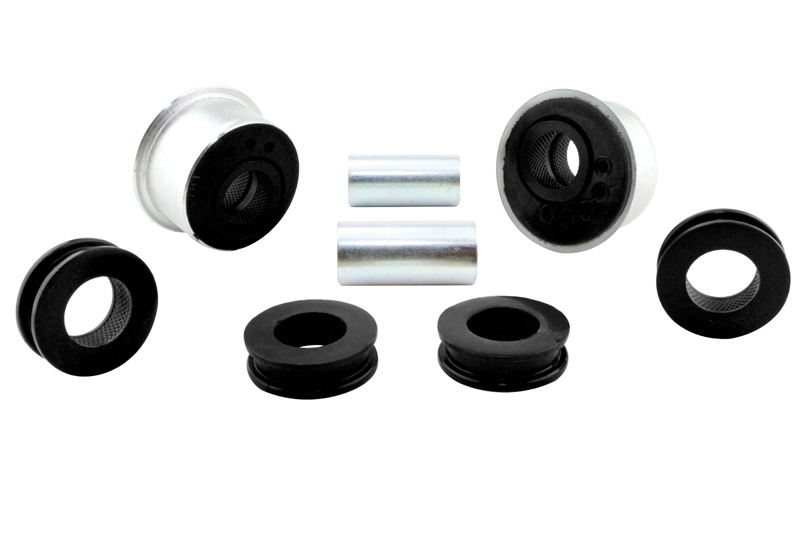

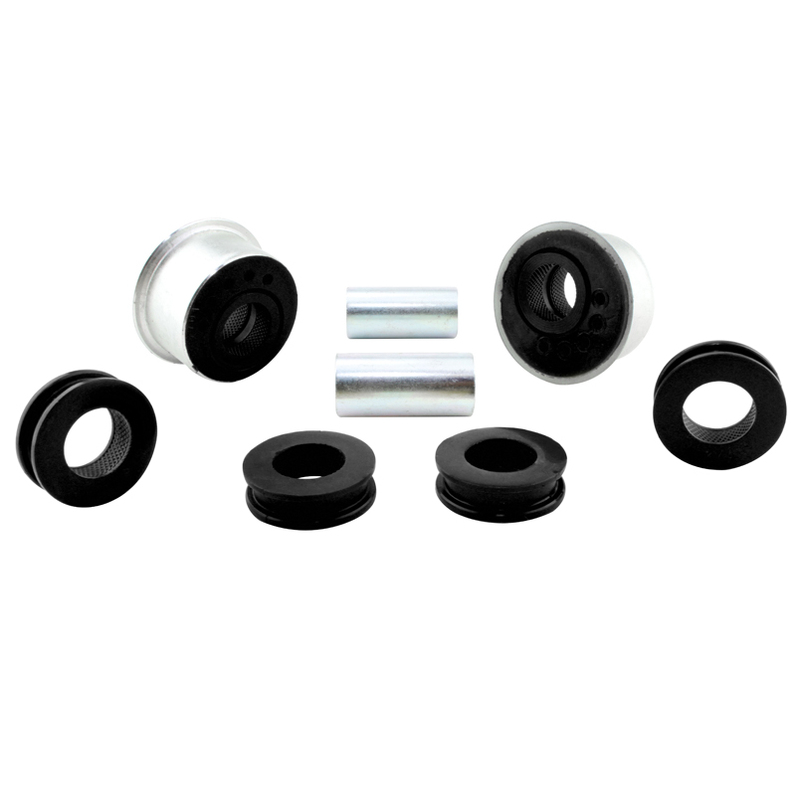

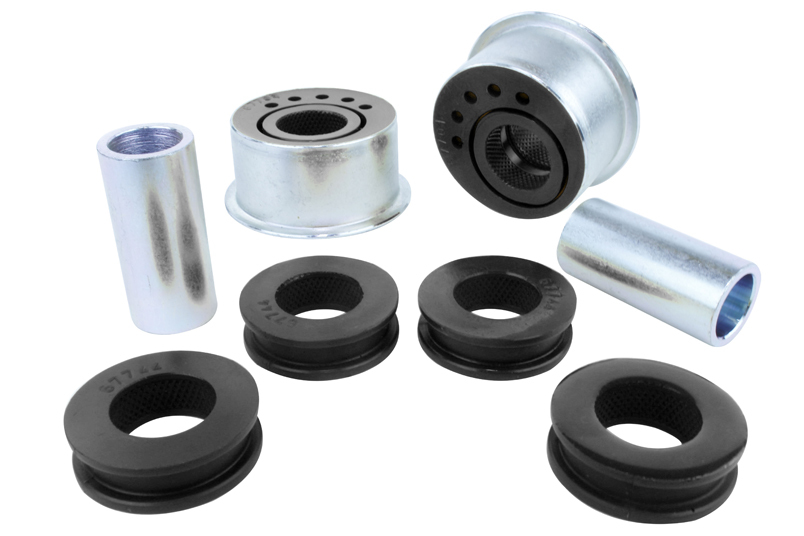

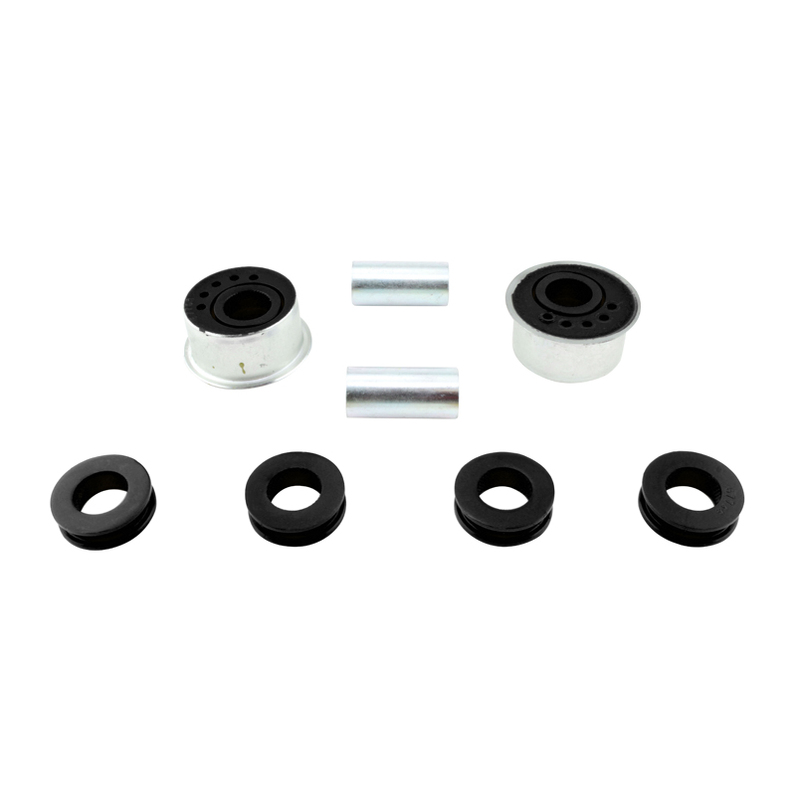

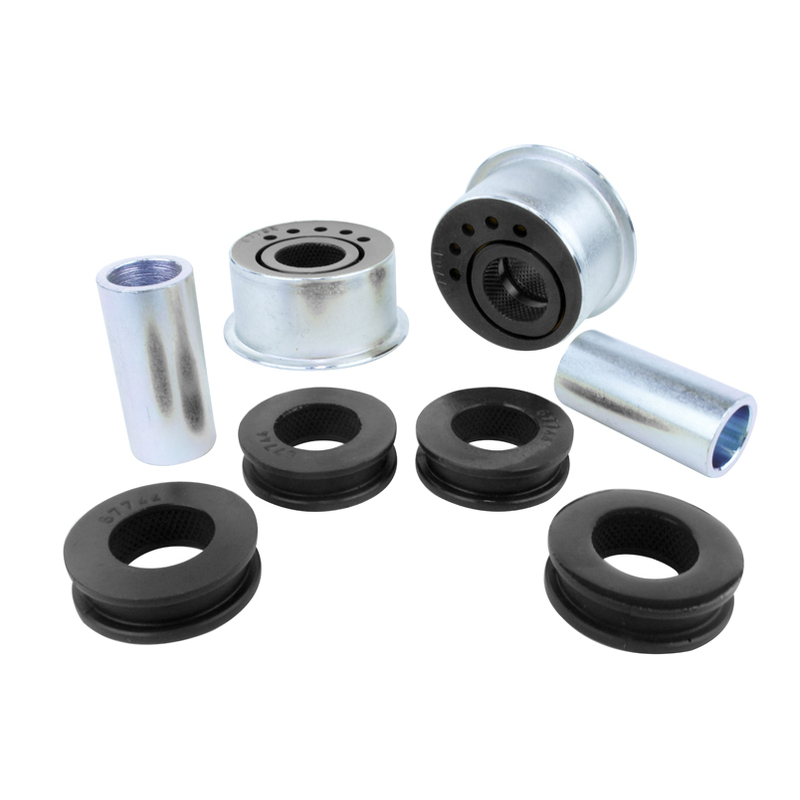

2 Shell Bushings, 4 Bushings, 2 Tubes |
| Sub brand |
Performance |
| Product Note |
[] |
| EAN |
9319924388516 |
Compatible Vehicles
SCION FR-S 2012-2021 ZN6
SUBARU BRZ 2012-2021 ZC6
SUBARU BRZ 2021-on ZD8
TOYOTA 86 2012-2021 ZN6
TOYOTA 86 2022-on ZN8, ZD8
TOYOTA GT 86 2012-2021 ZN6
