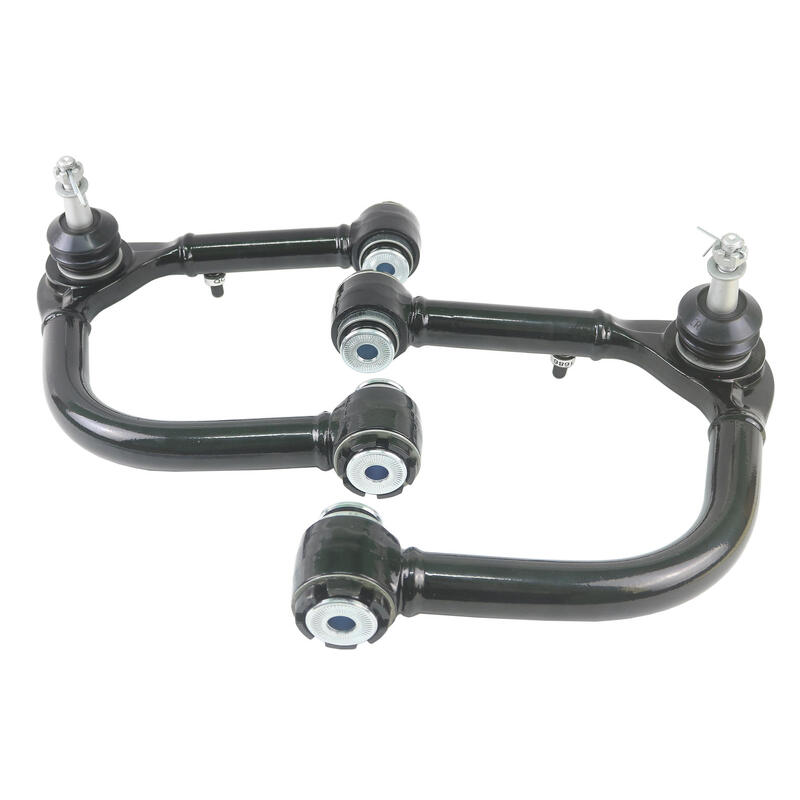

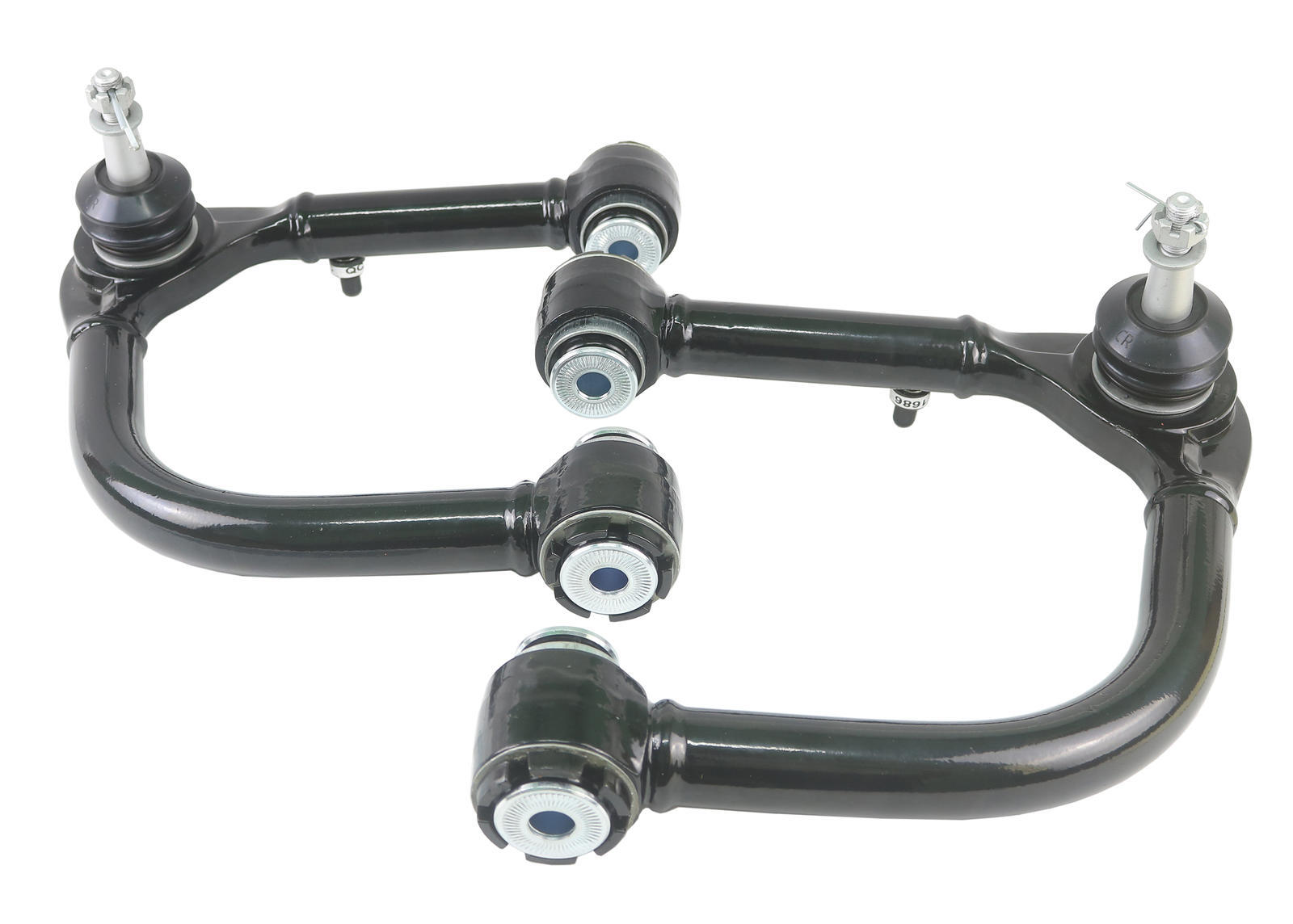

Benefit Note: A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.
Installation
Install Guide: Download guideline
Fitting time: 2 hrs
Fitting Difficulty: Tricky installation may take longer then you think if you are not experienced, we reccomend you use our click & fit service.
Recommend Wheel Alignment: None
| SKU |
KTA345 |
| Foot Note 1 |
Performance arms |
| Foot Note 3 |
3 Year / 60,000Kms |
| Components Per |
2 Arms |
| Sub brand |
Performance |
| Product Note |
[] |
| EAN |
9319924473823 |
Compatible Vehicles
FORD AUSTRALIA EVEREST 2022-on UB, P704 4WD
FORD AUSTRALIA RANGER 2022-on PY, P703 4WD
VW AMAROK 2022-on T1A, T1B 4motion
